AEI-e410C-PoE PCI Express Quad Fast Ethernet NIC 4 + 1 Embedded Switch Optionally Supports PoE
|
 |
Related Products:
AEI-e810C-PoE (8+1 embedded switch)
-
Compatible with x1, x4, x8 and x16 PCI-e slots!
-
PoE power sourced from host system PSU via rear disc drive connector.
-
IEEE 802.3af-2003 (PoE)
Max. 44-57VDC @ 15.4W output per port
-
Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
-
OEMs can offer end-users a proprietary fully integrated PoE compatible solution.
-
Offers a much cleaner installation without added cables, injectors & switches.
-
Provides for a much simpler installation reducing service calls.
-
Multiple Cards per system - ok!
-
Scalability - Allows OEMs to offer customers an upgrade path for additional PoE ports.
-
AEI Fault Tolerant Utility included at no charge! It's Not Just A Switch!
Network Device and Node Monitoring, Fault Notification (pop-up, email & text), and
PoE Advanced Power Management. Allows Service Providers to be responsive, rather than reactive to customer needs. -
Command Line Interface control of PoE ON/OFF/RESET functions... accomplished without rebooting the host system. Click Here * Patented or patent pending technology.
Not Just A Switch...
Both the AEI-e410C and the AEI Fault Tolerant
Utility incorporate patent pending technology. The combined
solution allows users to monitor network connectivity on user-defined network clients;
or IP Devices such as IP Cameras, VoIP Phones, wireless links, etc.
When network connectivity fails it notifies one or more recipients
via email and/or text message. If the monitored device is PoE
compliant, the solution can be
user-configured to automatically reset PoE Devices
in an attempt
to correct the network fault. Quite simply, the functionality
offers users unparalleled network monitoring, fault notification,
and PoE Power Management!
Click here for more information
- - - -

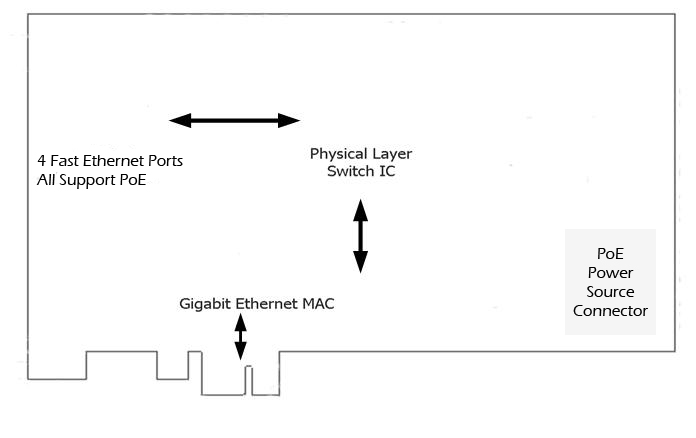

AEI Intelligent Technologies' AEI-e410C is a flexible and
high performance embedded Physical Layer switch providing four (4)
exterior Fast Ethernet ports, plus an independent 1000Base-T
internal Gigabit uplink to the host system's PCIe bus through the
card edge connector.
Installation
is a snap. Users only install one Gigabit Ethernet device
driver, which is plug and play in most operating systems; and
supports a wide variety of architectures.
The four Fast Ethernet ports are controlled independent of the PCIe Bus by an embedded switch IC, which has 5.6 Gbps of bandwidth to achieve wire-speed performance. Moreover, it operates independent of the host system. Subsequently, if the host system locks the Gigabit uplink port to the host will no longer function, however, the eight Fast Ethernet ports will continue to function normally and pass data among themselves like a normal switch so long as power/GND resides on the motherboard.
The AEI-e410C is an ideal networking solution for multiport industrial and fault tolerant applications!
IEEE
802.3af
Power Over Ethernet (PoE) Switch (Optional)
This section only applies to Power over
Ethernet (PoE) applications.
By using Power over Ethernet, installers need only run a single CAT5 or CAT5E Ethernet cable that carries both power and data to each remote Power Device (IP Cameras, VoIP Phones, POS Terminals, wireless access points, IP based access control devices, etc.), therefore decreasing installation costs.
Onboard Power Conversation technology allows system integrators to plug the internal PC power supply cable (4-pin disc drive connector) directly to a mating connector on the rear of the AEI-e410C.
This Onboard Power Conversion technology enables the controller to act as a PSE switch (Power Source Equipment). The 4 external Fast Ethernet ports are designed independently using IEEE standards for PoE (802.3af). Each port automatically senses if a PoE capable PD (Power Device) is attached. If the PD provides appropriate handshaking, onboard intelligence enables 48VDC power on the individual port.
The adapter eliminates the need to run high voltage power 110-220VAC to remote PoE devices, and eliminates the need for standalone Midspan and Endspan PoE switches/injectors.
| IEEE 802.3AF 10/100 Mixed DC & Data (Mode A) |
||
| Pin | Symbol | Description |
| 1 | TX+ DC+ | Mixed DC & Data |
| 2 | TX- DC+ | Mixed DC & Data |
| 3 | RX+ DC- | Mixed DC & Data |
| 4 | unused | |
| 5 | unused | |
| 6 | RX- DC- | Mixed DC & Data |
| 7 | unused | |
| 8 | unused | |
The AEI-e410C-PoE sources it's "PoE power supply" internally from the system PC Power Supply (disc drive power connector). It incorporates "onboard" Power Conversion Technology™ that ramps up the 12VDC rail to the necessary PoE voltage.
(Refer to Application Notes: AP-001 rev. 1.0 "AEI-e410C Application Note for System Engineers.")
Advanced PoE Power Management Features
OEMs are provided a set of unique patent
pending advanced
features with the
AEI-e410C. This utility is free with the purchase of an
AEI-e410C.
PoE Fault Tolerant Utility:
This software utility identifies cable and connection faults, network faults, as well as Power Device faults; notifies the user of the fault; and attempts to take correction action to cure the fault.
This software utility resides on the Host System (NVR, or other PoE server). The utility monitors various wired or wireless network connections between the Host System and any network attached devices. This includes, but is not limited to other computers, routers, IP cameras (or other IP Power Devices). Users simply configure the utility to monitor up to 126 different "devices" (wired and wireless) in the software's configuration screen.
When a network fault is detected on one or more of the monitored devices, the utility will attempt to re-establish the network connection two more times. If still unable to re-establish a network connection the utility will attempt to correct the fault by cycling PoE power (ON-OFF-ON), and subsequently restarting all PoE attached devices including PoE network equipment (routers), and other PoE Power Devices such as IP Cameras, POS Terminals, etc. In the event a device is locked-up, restarting it will usually cure the fault.
Additionally, when a network fault is detected an ALERT will be sent. A pop-up window will be displayed on the Host System identifying the fault and what device(s) are reporting the fault. The utility can also be configured to send an email ALERT messages to multiple recipients.
After cycling PoE power and resetting all Power Devices, the software will wait 5 minutes to allow all devices to re-establish network connectivity. The utility will then attempt to re-establish a network connection with the prior faulty device(s). If the device is able to establish a network connection , an "all good" ALERT message will be sent via a pop-up window and/or email. If the network fault has not been resolved, a final "fatal error" ALERT message will be sent.
If the user wants a warning message sent without cycling power on all the power Devices... this can be accomplished in the utility configuration screen, or simply do not install the header cable between the motherboard and the AEI-e410C.
PoE Remote Power Reset
The utility provides a mouse-clickable
button on the GUI to cycle PoE power
ON-OFF-ON, and subsequently reset
all Power Devices, without re-booting the Host System. This feature allows
users with Remote Access privileges to the network to simply and
easily reset all PoE Power Devices and PoE network equipment
(routers, etc.) connected to the AEI-e410C.
Additional information about the AEI Fault Tolerant Utility is available by clicking here.
24 Hour Restart Jumper Setting
This is an optional jumper setting on the AEI-e410C Intelligent Power Conversion Card, and not recommended or necessary when the PoE Fault Tolerant Utility is running. When this jumper is installed, PoE power is cycled ON-OFF-ON for 2-5 seconds every 24 hours of continuous operation. This fault tolerant feature ensures that all Power Devices and PoE network equipment (routers) are re-booted regularly to ensure no prolonged faults. Through a factory firmware upgrade, the wait period between automatic restarts can be increased or decreased to any amount of time, days, weeks, months, etc.
Manual PoE Reset Switch - Optional
The AEI-e410C Intelligent Power Conversion Card includes a two-pin header for a manual switch in the event an OEM wishes to put a PoE Power Reset switch on their enclosure (SPST Momentary). This will allow users to reset PoE Power, and subsequently all attached PoE devices without having to re-boot the Host System.
Product Specifications
| Part Numbers |
AEI-e410C |
| Connector | RJ-45 (f) Quad Gang Connector. |
| IEEE Standards |
Four External Fast Ethernet Connections IEEE 802.3 (10Base-T Ethernet) IEEE 802.3u (100Base-Tx Ethernet) IEEE 802.3af PoE Mode B up to 350mA (15.4W)/port IEEE 802.3au PoE Isolation Requirements IEEE 802.3u Auto-negotiation IEEE 802.3x Duplex and Flow Control Internal
GigE Connection to PCIe
Bus |
| PCI Express Slot | PIC-e x1 compatible with x4, x8, or x16 slots |
| Bus Type | PCI Express 1.1 compliant |
| Speeds, Cable & Distance |
Ethernet, 10Base-T (Cat 3, 4, 5
UTP) Fast Ethernet, 100Base-Tx (Cat 5 UTP or better) Distance up to 100 meters maximum |
|
Auto-negotiation / NWay |
Auto-negotiation between Full duplex and simplex operations AND between 10 Mbps and 100 Mbps.
Gigabit uplink operates at Full Duplex. |
| Diagnostic LEDs |
Four Fast Ethernet
Ports (Ext. on PCI Bracket) Gigabit
Ethernet Uplink (Internal LEDs) 4+1 Switch
Indicators (Internal LEDs) Onboard Power Management
(Internal LED) |
| Driver Support |
See the following hyperlink for downloadable device drivers, Diagnostic, and Management Applications.
|
| Certifications |
RoHS Compliant FCC Part 15, Subpart B - Class A; CE; CISPR-22-A; CISPR-22-B, VCCI-A; CSA 22.2 No. 950-95; and CE compliant to: EN55024, EN50082-1, EN60950 |
| Environment Specs |
Temperature: operating 0C to 60C Humidity: 0 to 90% non-condensing * extended temperature version available up to 70C |
| MTBF* | 127 Years |
| Dimensions | Universal Short Card 6.6" (L) x 4.2" (H) |
|
Power Consumption (Card Only) |
Add-in
Card (does not include PoE): |
| PoE Technology | |
| PD Classification |
Signature Detection, class ID 0~3 IEEE 802.3af standards |
| Pin Assignments |
10/100 Mixed DC & Data (Mode A) See table above for further details. |
| PoE Input |
One 4-Pin Disc Drive Connector Maximum 12VDC @ 2.8A (33.6W) See Application Note AP001 for further information. |
|
PoE Output |
Max. 48VDC @ 350mA per Port
(15.4W per port) |
* According to Telcordia SR-332 Issue 1 Environmental condition – GB (Ground, Fixed, Controlled). Ambient temperature - 25°C. Temperature rise of 10°C above the system ambient temperature was assumed for the cards components.
